Mimaki UCJV300-75 UV LED Printer/Cutter (31.5" Wide)

Hover over image to zoom

  • Image 1
RRP: $17,995.00
$16,995.00 (You save $1,000.00)

 Product Description

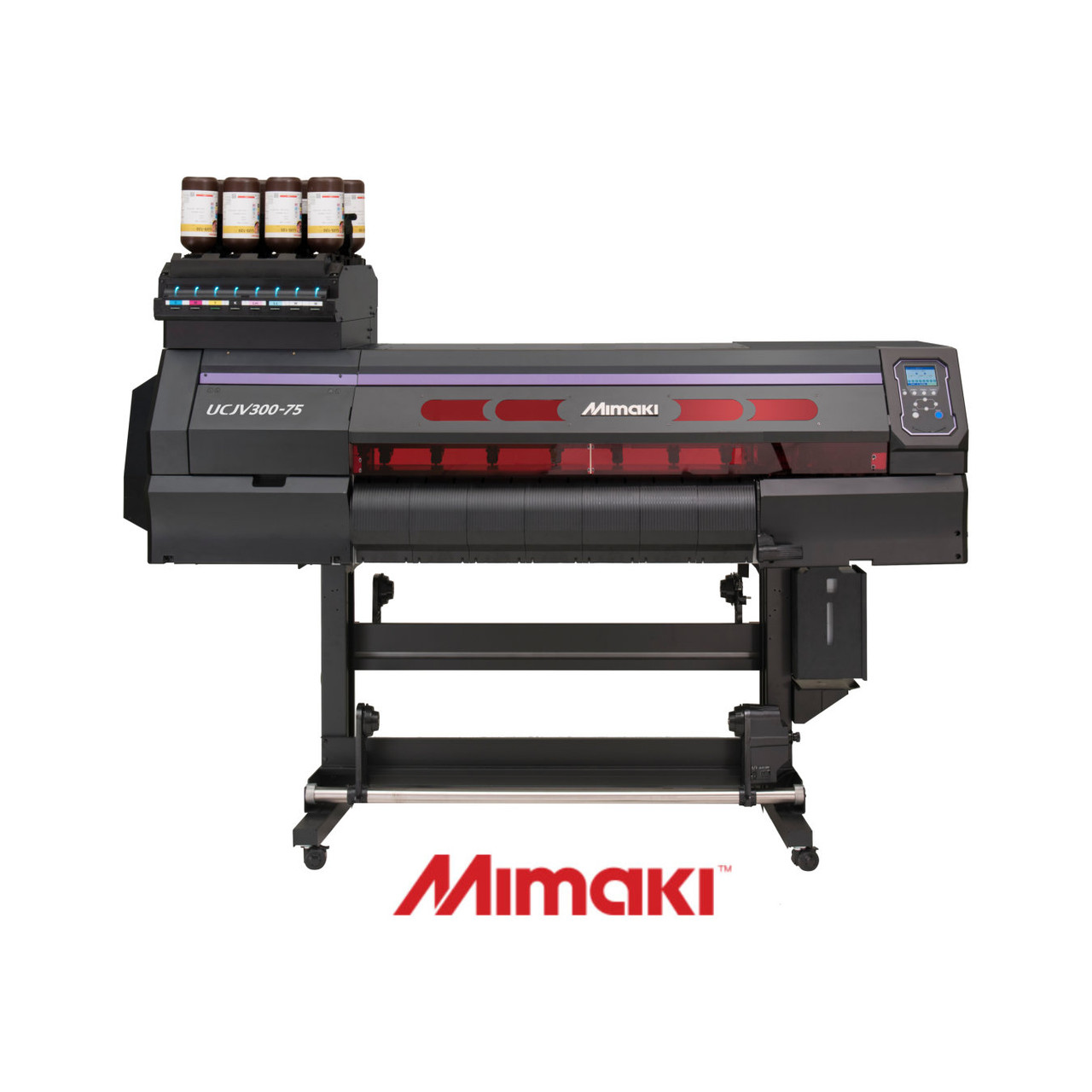

Mimaki UCJV300-75 UV LED Printer/Cutter (31.5" Wide)

Current Promotion:

  • Promotional period:  January 1, 2021 through February 24, 2021
  • Promotion includes:  Purchase a UCJV300-75 within the promotional period and receive an instant Rebate $1,000.00!
  • Warranty includes:  (12) months of TOTAL CARE coverage
  • Installation/Training & Freight:  Additional / Contact APC at (855) 927-2465 for an all inclusive, installed price including freight
  • Software included:  Ships with Rasterlink 6 Plus RIP software AND FineCut 9 plug in software for Adobe Illustrator and/or CorelDraw
  • Inks:  (Ink sold separately)
  • Ink Options Available:  LUS170 (CMYKLcLmW - 1000cc bottles) or LUS200 (CMYK - 1000cc bottles)

Additional Incentive:


Now offered in 31.5" size, the UCJV300-75 is an LED UV Curable print/cut solution. Being UV Cured, LUS-170 inks give a wider range of media compatibility than any other ink technology. White inks extend this range even further, allowing printing on clear, metallic and even solid colored media. With contour cutting built in, the UCJV300 is the machine that suits nearly every graphic application...

UCJV300 for Sign & Display Makers


Provide exciting new decals and fleet graphic options by printing on chrome, glitter, prismatic and other special-effect vinyls. Leverage the dense white inks to put white designs on clear or the 3-layer printing (color/white/color) to produce double-sided window decals.

LUS-170 Inks have a high scratch resistance for banners, and when you do need to laminate, no out-gassing means you can do so immediately after printing!

Thanks to their high flexibility, the vibrant LUS-170 inks provide excellent adhesion to polyester fabrics, making an excellent alternative to dye-sublimation. Produce backdrops, fabric frames and even backlit fabric light-boxes.


UCJV300 for Interior Decorators


Print on paper, fabric,  vinyl and even natural grasscloth wall coverings. GREENGUARD-Gold certified inks mean you can feel confident putting your wall paper and photo-murals into schools, hotels and hospitals without worry of harmful VOCs.

Window shades, room-dividers and even specialty flooring products are other possibilities too.


UCJV300 for Industrial Printers


With an ability to print on Polycarbonate materials, the UCJV300 is a fast effective replacement to screen printing for Membrane Switch and Graphic Overlay needs.

Second surface printing, backed with white inks makes for highly durable name-plates and product ID Tags with out the need for a top laminate.


If you can't stand the heat, get away from the Latex


Need prints with no residual VOCs or odors that can be be immediately handled, trimmed or even laminated? The UCJV300 offers exactly that and unlike latex prints which require high amounts of heat to cure, prints from the UCJV300 are cured using only cool UV Lamps. This makes it the perfect solution for printing materials that are sensitive to heat, plus it uses a fraction of the electricity too.

Industrial-class, Piezo Print Heads (Ricoh Gen 5) means the UCJV300 can produce consistent color, panel-to-panel and from beginning of a run until the end. Being permanent, means no pesky replacement, calibration and linearization of heads mid-way through a print run.



New Product... Proven technology


Using the same industrial strength print heads used in Mimaki's high-end Flatbed Printers, you can trust the UCJV300 deliver the quality needed by your demanding clients.

Based on the chassis and print/cut technology of the highly popular CJV150 and 300 solvent machines, the UCJV300 is an ultra-stable platform for long unattended print runs and accurate cutting.




Economical and Safe UV Inks



The UCJV300-75 has an easy-to-use bulk ink system built right in. 1 liter bottles allow for long print runs and low running costs. LUS-170 inks generate only low amounts of VOC, plus the yellow ink is eco-friendly and nickel free.

LUS-170 has earned the GREENGUARD Gold certification, which is based on most strict global standards.

Tools for improved Print/Cut Workflow



ID Cut uses and integrated bar-code reader allows continuous, unattended contour cutting, even when different jobs are nested on one roll.

Half-Cut mode allows for fully cut decals (i.e. through the backing paper too), without the need for a separate flatbed cutter.

Over Cut makes a cross cut at the start and end positions so the finished piece has sharp edges with no undercut fragments.



Anti-Banding Technology


Variable drop printing combined with MAPS4 (Mimaki Advanced Pass System 3) technology ensures precise and accurate print quality throughout the printing process. This virtually eliminates signs of both pass and cure related banding, making for prints with a smooth appearance and beautifully even satin finish.



Technical overview of the Mimaki UCJV300-75 Cut-and-Print Device

Print System On-demand piezo, 2 print heads, 8 color channels
Maximum Print Width 31.5"
Print Resolutions 300, 600, 900, 1200 dpi
Maximum Print Speed Up to 277.7 SqFt/Hr (25.8 SqM/Hr)
Ink Type Mimaki LUS-170/LUS-175 UV ink: C, M, Y, K, Lc, Lm & W
Ink Capacity 1 liter bottles
Maximum Media Thickness Up to 0.04″ (1 mm)
Maximum Media Width 31.9 inches (810 mm)
Maximum Roll Weight 88 lbs. (40 kg)
Operational Environment Temp: 68.86˚ – 86˚ F (20˚ – 30˚ C)
35-65% RH (non-condensing)
Connectivity Ethernet, USB
Power supply AC100V~240V x2
Dimensions (W x D x H) 114.12” x 30.5” x 58.1” (3305 mm x 750 mm x 1180 mm)
Weight  390lbs (177 kg)



Contact us today at (855) 927-2465 for an installed cost! ..
