OK-10CP Rotary Sublimation Press (48" - 66" - Cut-Parts-Model)
Hover over image to zoom
![Pin It](http://pinterest.com/pin/create/button/?url=https://store.apcink.com/ok-10cp-rotary-sublimation-press-48-66-cut-parts-model/&media=https://cdn10.bigcommerce.com/s-ltaevkq/products/711/images/2052/practix-ok-10cp-sublimation-calendar-press-cut-parts-version__87836.1602299810.1280.1280.jpg?c=2&description=American Print Consultants - OK-10CP Rotary Sublimation Press (48" - 66" - Cut-Parts-Model), $39,000.00 (https://store.apcink.com/ok-10cp-rotary-sublimation-press-48-66-cut-parts-model/))
Product Description

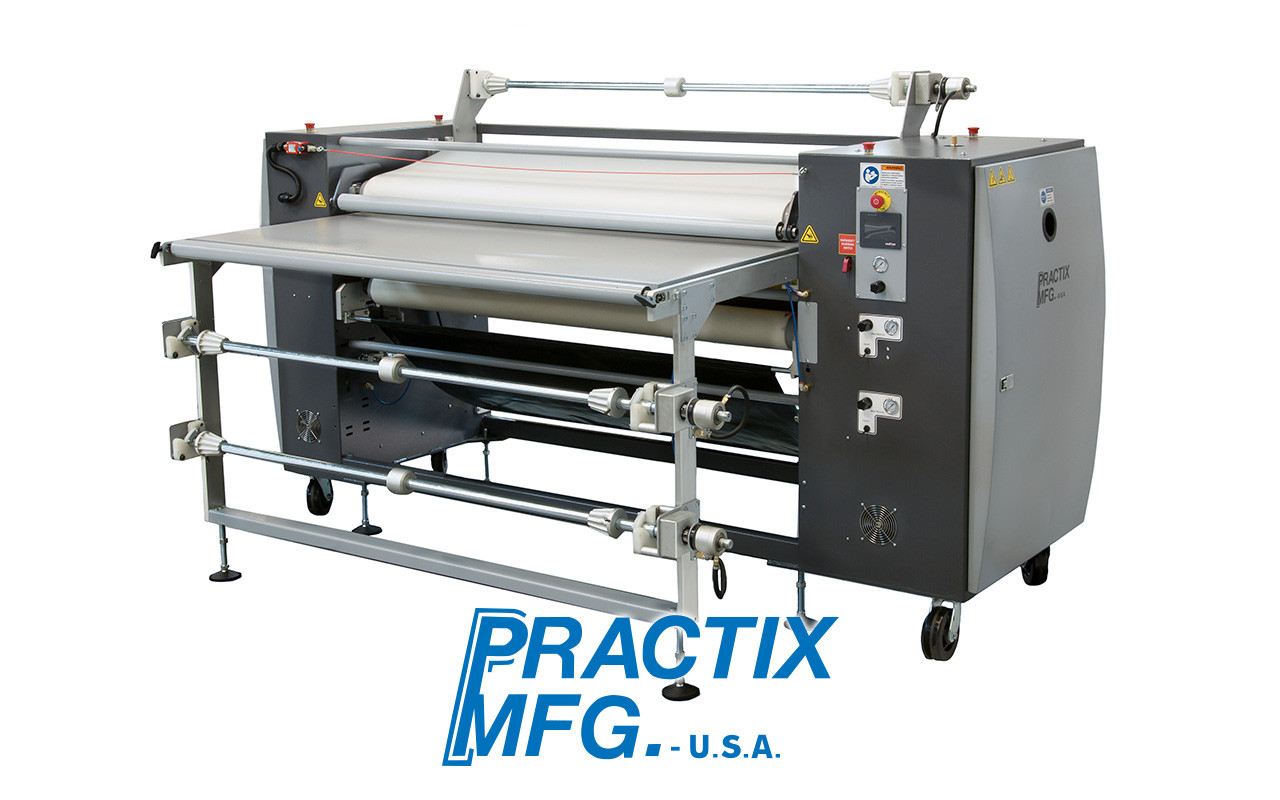

Practix OK-10 Rotary Sublimation Press (Cut-Parts Configuration)
The Practix OK-10CP is available in 48” or 66” printable widths. The oil filled heated drum is 10″ (250 mm) in diameter and has 240 degrees of wrap achieving faster production speeds than most comparable models. This configuration features the integrated work-table for "Cut-Parts" garment production, allowing your printed paper to act as a conveyor, carrying your fabric pieces into the press. Machine also features multiple unwinds/rewinds for use on continuous or roll materials too. Small and affordable, this heat press offers the Practix high-quality innovative engineered design using a heavy duty frame, automation, and best quality electrical and pneumatic components like all Practix heat transfer equipment.
All Practix Equipment is built to order in Georgia, USA. Call APC today for lead-times or requests for custom configurations.
Maximum Productivity:
- Integrated Work-Table for "Cut-Parts" production and ease of loading
- 48"or 66″ Printable width
- Larger 10″ diameter drum with 240 degrees of contact for faster production
- Oil filled drum for consistent heat throughout the width of the drum
- Automatic belt tracking
- Short heat-up times
Key Features:
- 4″ Touch screen control for all machine functions and programs for recipe setup
- Digital speed controller
- 2 unwinds/2 rewinds with independent pneumatic adjusting for more tension or brake (optional 3rd unwind/rewind for tissue available)
- 3″ chucks for all unwind and rewind shafts
- Reversing capability
- Safety systems (emergency stops and hand protection at entry)
- Automatic cool down timer
Key Specifications:
- Belt Width 48” (1200mm) / 66” (1700mm)
- Drum Diameter 10” (250mm)
- Max. Temperature 450 F (240 C)*
- Max. Belt Speed 5 ft/min (1.5 m/min)
- Power Supply 12 kW/ 13kW
- Motor 1/4 H.P
- Air Supply 100 PSI 0.5CFM
- Weight 48" = 2200 lb (998 kg) / 66" = 2835 lb (1286 kg)
- 220-240V, Single-Phase Electric
- Dimensions 66" = 108" x 58" x 44"
Warranty Information
1 Year Onsite Warranty
