Practix OK-10 Rotary Sublimation Press (48" - 66" - Roll-to-Roll)
Hover over image to zoom
![Pin It](http://pinterest.com/pin/create/button/?url=https://store.apcink.com/practix-ok-10-rotary-sublimation-press-48-66-roll-to-roll/&media=https://cdn10.bigcommerce.com/s-ltaevkq/products/709/images/2060/practix-ok-10-sublimation-calendar-press-roll-version__80187.1602358406.1280.1280.jpg?c=2&description=American Print Consultants - Practix OK-10 Rotary Sublimation Press (48" - 66" - Roll-to-Roll), $31,500.00 (https://store.apcink.com/practix-ok-10-rotary-sublimation-press-48-66-roll-to-roll/))
Product Description

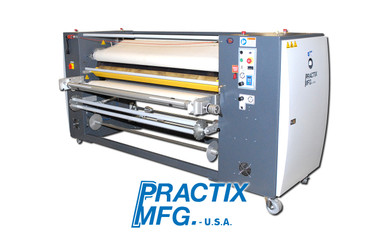

Practix OK-10 Rotary Sublimation Press (Roll-to-Roll Configuration)
The Practix OK-10 is available in 48” or 66” printable widths. The oil filled heated drum is 10″ (250 mm) in diameter and has 240 degrees of wrap achieving faster production speeds than most comparable models. This configuration can be used for continuous or roll materials. Machine can be used for transfer printing of sublimation paper, or fixation of directly printed fabrics (direct-sublimation or textile pigments). Small and affordable, this heat press offers the Practix high-quality innovative engineered design using a heavy duty frame, automation, and best quality electrical and pneumatic components like all Practix heat transfer equipment.
All Practix Equipment is built to order in Georgia, USA. Call APC today for lead-times or requests for custom configurations.
Maximum Productivity:
- 48"or 66″ Printable width
- Larger 10″ diameter drum with 240 degrees of contact for faster production
- Oil filled drum for consistent heat throughout the width of the drum
- Automatic belt tracking
- Short heat-up times
Key Features:
- 4″ Touch screen control for all machine functions and programs for recipe setup
- Digital speed controller
- 2 unwinds/2 rewinds with independent pneumatic adjusting for more tension or brake (optional 3rd unwind/rewind for tissue available)
- 3″ chucks for all unwind and rewind shafts
- Reversing capability
- Safety systems (emergency stops and hand protection at entry)
- Automatic cool down timer
Key Specifications:
- Belt Width 48” (1200mm) / 66” (1700mm)
- Drum Diameter 10” (250mm)
- Max. Temperature 450 F (240 C)*
- Max. Belt Speed 5 ft/min (1.5 m/min)
- Power Supply 12 kW/ 13kW
- Motor 1/4 H.P
- Air Supply 100 PSI 0.5CFM
- Weight 48" = 2000 lb (900 kg) / 66" = 2400 lb (1089 kg)
- 220-240V, Single-Phase Electric
- Dimensions 66" = 108" x 58" x 44"
Warranty Information
1 Year Onsite Warranty
