Barbieri Spectro LFP qb - Textile Edition (Reflection/Transmission Spectrophotometer)

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
Barbieri Electronic

 Product Description

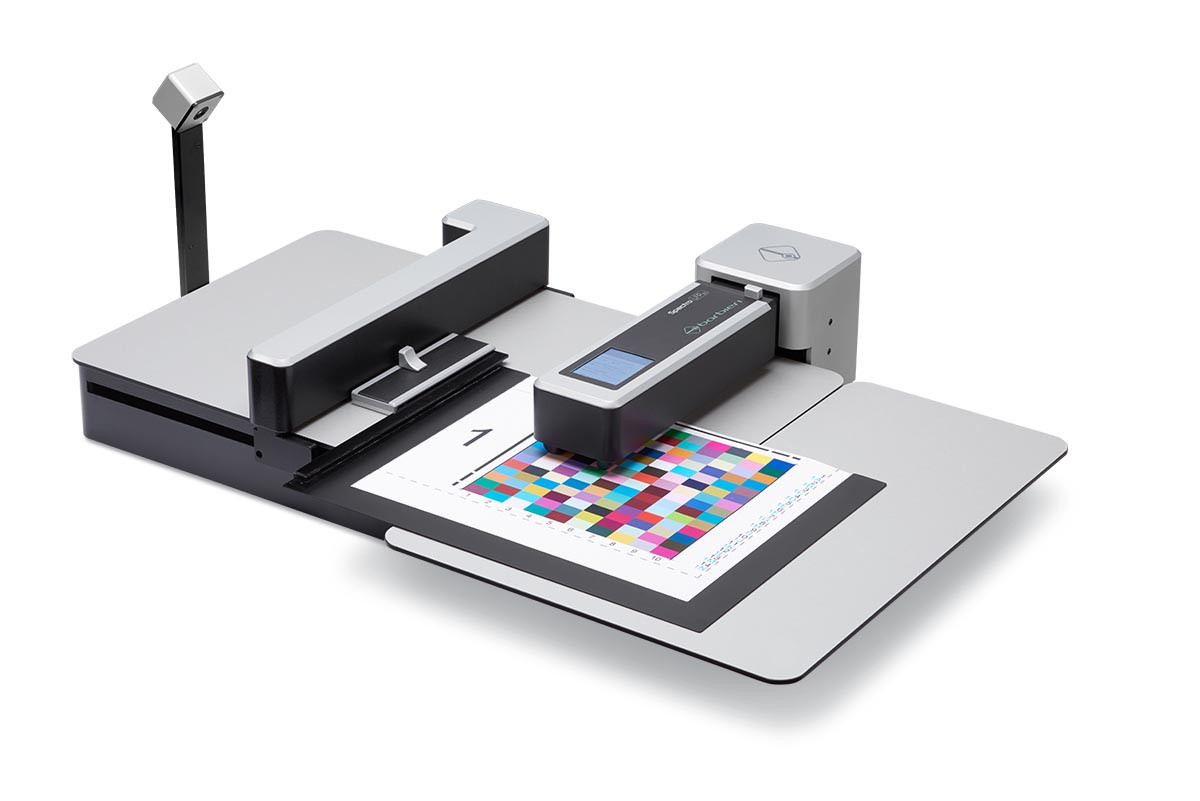

Barbieri Electronic Spectro LFP qb (Automatic Reflection/Transmission Spectrophotometer)

Spectro LFP qb "Textile Edition" is the leading solution for automated color measurement of dye-sublimation and direct-to-textile digital printing. Based on the exceptional Spectro LFP qb, the "Textile Edition" has additional software and accessories which fully-automated, precise and repeatable measurements on and kind of fabric. Additionally, the built-in Air blowing system prevent textile fibers from contaminating the optics.

An electrostatic textile sample holder allows fixing of thin textiles without taping, the unique camera system and software detects the position of each patch to allow fully automated reading, even if the chart is distorted. The detachable measuring head allows quick capture of color data from finished garments or bolts of fabric.




Key Features:

  • High-speed automated measurements allows for large patch-sets to be read quickly with minimal labor
  • Camera-sensing unit for automatic target positioning
  • Removable measuring head (spectral unit) for measuring spot colors
  • Switchable apertures of 2, 6, 8 mm allow for linearization and ICC profiling for a range of print devices
  • Accommodates a huge range of print materials, up to 20mm thick
  • Superior measurement for backlit and light-box graphics
  • Measurement of fluorescent inks
  • Real D50 illumination to guarantee conformance to new ISO 13655-2017 “M1 part 1/ method a”, M0, M2, M3 measurement condition …reflection and transmission!
  • Includes measurement software, Barbieri Gateway for Mac and PC
  • USB and Ethernet connectivity
  • Supported by major RIP manufactures (Onyx, Caldera, ErgoSoft, Wasatch, InEdit, ColorGate and more

Who needs this device?

  • Print providers requiring the highest color accuracy or a need to match stringent standards such as G7/GRACoL
  • Print shops who require color control over a range of different print processes (i.e. UV Inkjet, Laser Print, Dye-Sublimation etc.)
  • Graphics producers who use a wide variety of media and substrates and require fast re-profiling
  • Color Consultants requiring ONE device that can provide accurate readings of almost every print and media combination
  • Producers of backlit graphics who require the best transmissive color readings
  • Manufacturers or R&D labs who need to make repeated measurements of large data-sets


Included Items:

  • C5A10 Spectro LFP qb Spectral Unit
  • C5A20 Spectro LFP qb Platform
  • C5A30 Spectro LFP qb Sensing Unit
  • C5H40 Standard reflection sample holder
  • C5H50 Standard transmission sample holder
  • C5H70 Spot Measurement Guide
  • C5H80 Electrostatic textile sample holder with frame
  • C5H82 sticky mat sample holder
  • C5S07 Textile activation Spectro LFP qb


 APC offers free shipping on all Color Management Products over $400

Not sure if this is the right device for you? Please call us at 855-927-2465 and ask to speak to one of APCs Color Consultants for further information



 Warranty Information

1 Year Warranty
