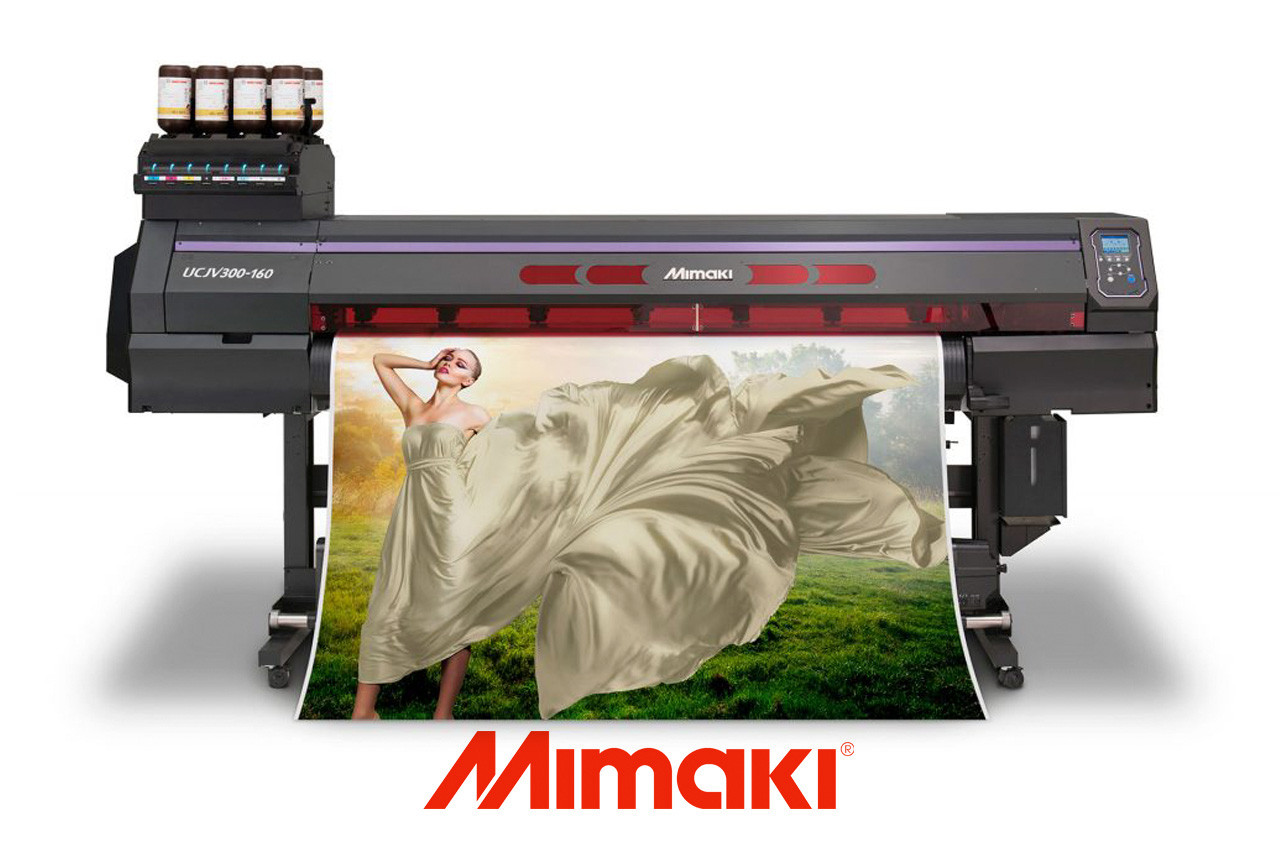

Mimaki UCJV300-160 UV LED Printer/Cutter (64" Wide)

Hover over image to zoom

  • Image 1
Mimaki
$22,995.00
Availability:
Installation Required. Call 855-927-2465 for "All-In" Pricing.
UCJV300-160

 Product Description

Mimaki UCJV300-160 UV LED Printer/Cutter (64" Wide)

** CURRENT PROMOTION **

Promotional Period - July 1, 2022 through August 26, 2022

  • Purchase a UCJV300-160 during the promotional period outlined above and receive:
  • Two (2) years of warranty coverage broken down as follows:
  • First (12) months of TOTAL CARE coverage
  • Remaining (12) months of PARTS PLUS coverage (Onsite and travel time NOT included)
  • UCJV300-160 pricing does not include taxes (If applicable), freight or installation - Contact APC for an all inclusive, installed price!
  • Software included: Ships with Rasterlink 6 RIP software AND FineCut 9 plug in software for Adobe Illustrator and/or CorelDraw
  • Inks: Inks SOLD SEPARATELY - (To be configured by APC Technician)

Unrivaled Versatility

The UCJV300-160 is the worlds only 64" wide LED UV Curable print/cut solution. Being UV Cured, LUS-170 inks give a wider range of media compatibility than any other ink technology. White inks extend this range even further, allowing printing on clear, metallic and even solid colored media. With contour cutting built in, the UCJV300 is the machine that suits nearly every graphic application...

  • Highest media versatility with unparalleled scratch resistance
  • Print and cut capability in one unit
  • White Ink and 5-Layer modes allows for second-surface printing and double-sided clear decals
  • Clear Ink allows unique raised and "spot-gloss" effects
  • Instantly-cured prints for shorter turnarounds and additional cost savings
  • Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks
  • 3M™ MCS™ Warranty on LUS-200 inks and Avery Dennison™ ICS™ Performance Guarantee on LUS-170/LUS-200 inks
  • RIP software RasterLink6 Plus with ID cut function included

Specifications

  • Printhead: Two industrial-grade, in-line on-demand piezo heads
  • Print resolutions: 300dpi, 600dpi, 900dpi, 1200dpi
  • Cut Speed: 16.5″ sec (42.0 cm/sec)
  • Maximum Cut pressure (Metric grams): 450g
  • Maximum print area: 63.4"
  • Maximum media width: 63.8"
  • Maximum media thickness: Up to 1mm)
  • Maximum media weight: Up to 88.2 lbs
  • Ink type: U.S. & Canada - LUS-170 and LUS-200 (C,M,Y,K,Wh, Cl)
  • Ink package size: 1L bottles
  • Interface: Ethernet cable or USB2.0 cable
  • Power supply: Single phase AC100~120V/200~240V (+/- 10%), 50-60Hz (+/- 1Hz)
  • Operational enviroment: Temperature 20-30 degrees C with Humidity at 35-65% RH (non-condensing)
  • Printer size: 103.5″ x 30.6″ x 58.1″
  • Assembled printer weight: 414.5 lbs
