GeoKnight DK20SP 16x20 Air Operated Digital Swing-Away Press

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
$2,950.00
GEO DK20SP

 Product Description

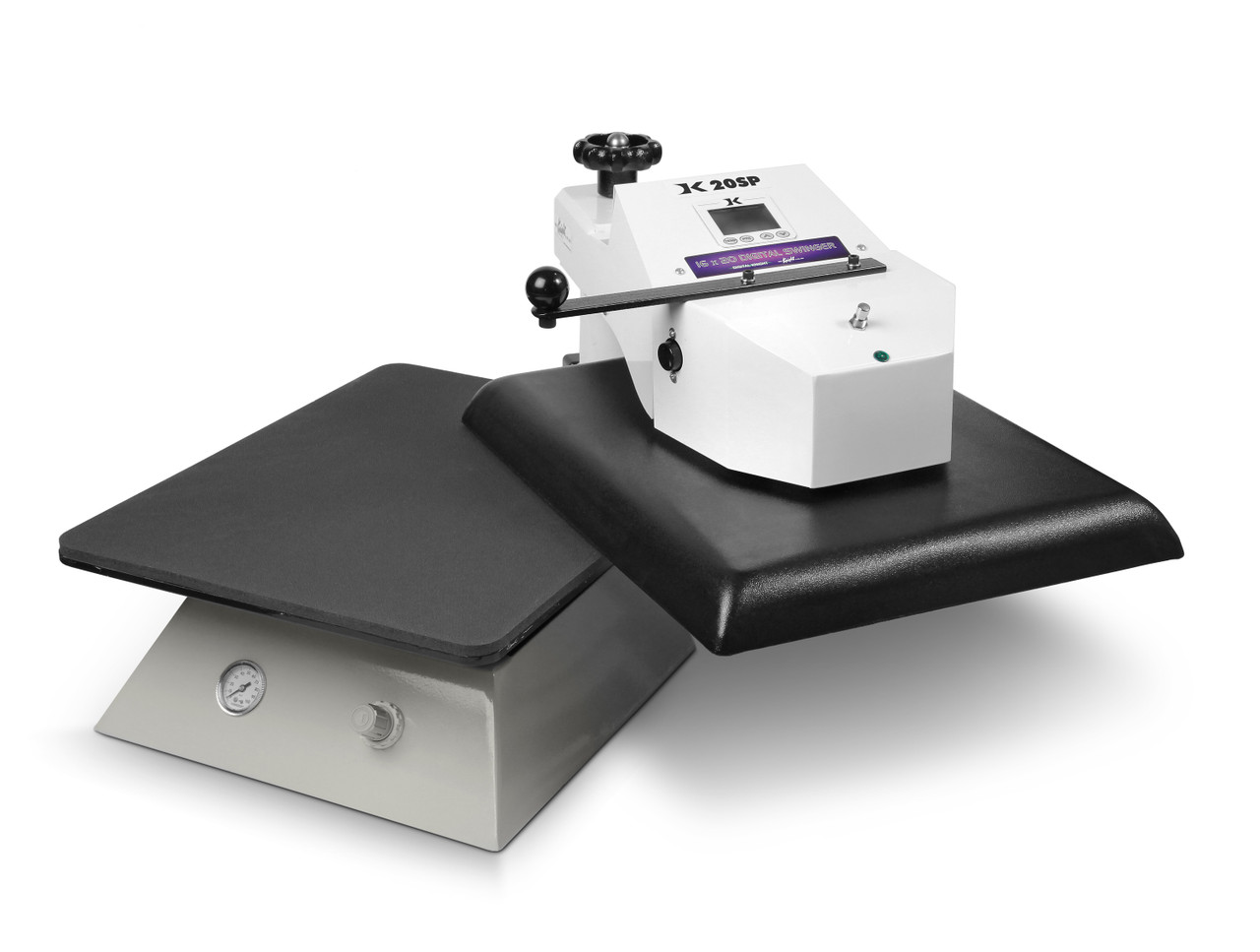

GeoKnight DK20SP 16x20 Air Operated Digital Swing-Away Press

The DK20SP is an air-operated automatic table top swing-away heat transfer press. The DK20SP provides a production oriented heat press with the benefits of push button operation, fully digital temperature & time control, and solid casting design with an affordable automatic heat press price. It is available in a 16" x 20" heater block size.

The DK20SP utilizes the same Digital Knight control system as the DK20S series, and operates with a smooth swing-away fashion instead of shuttling. For demanding press runs and super consistent results, the DK20SP is an ideal press for meeting requirements that go beyond what a manual transfer press and operator can handle. The DK20SP is the industrial grade midrange solution between heavy duty manual heat presses such as the DK20 and DK20S and high production 394 Factory Shuttle Press machines.

 FEATURES:

  • Fully digital temperature control 32°-600°F range
  • Automatic digital timer & dual pre-press timer
  • Air regulator and gauge 20-100 PSI range (compressor req)
  • Total applied force of 3000 lbs max
  • 70 Programmable presets
  • Solid steel welded framework
  • Interchangeable tables
  • SuperCoil-Microwinding™heater technology
  • Accommodates materials up to 2" thick
  • Temperature readout accuracy +-2°F - can show °C or °F
  • User selectable end-of-cycle alarms
  • Records number of pressing cycles done
  • Teflon-coated 3/4" thick heat platen

WARRANTY:

  • FREE LIFETIME Tech Support!
  • Lifetime warranty on heat platen
  • 5-year warranty on frame
  • 3-year warranty on controller
  • 1 year warranty on parts
  • Air Compressor Required (min): 7gal, 1cfm, 100psi, 1/4" line
  • Weight: 220 Lbs
  • Electrical: 1800W / 15A / 120V
  • Dimensions: 32" D x 27" W x 18" H
  • (add $35 for 220V international)

Download the DK20SP Sell Sheet below:


 Download the COMPLETE 2018 GeoKnight Swing Away Catalog below:


 Download the COMPLETE 2018 GeoKnight Catalog below:




(This item exceeds the UPS standards for ground transit and would ship LTL - Freight to be assessed at time of order entry)
